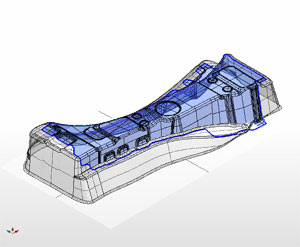

PRESS-SIM is a simple simulation tool that helps shaping a press die. This enables a quick understanding of ‘Blank Deployment Lines’ and ‘Flange Development Lines (Trim Development Lines)’ that will help quotations at the initial stage of design.

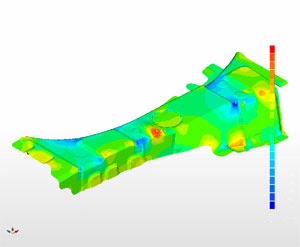

Also, the capabilities of decreasing thickness ratio and analyzing cracks and wrinkles enable quick detections of poor shapes.

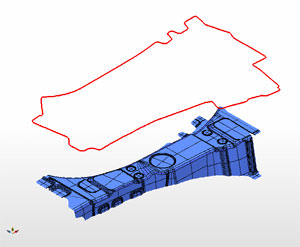

This command enables a quick creation of lines/curves that express the outlines of a modelled shape on a plane surface
This command enables a quick creation of flange curves/lines for dies in accordance with a shape of product.
